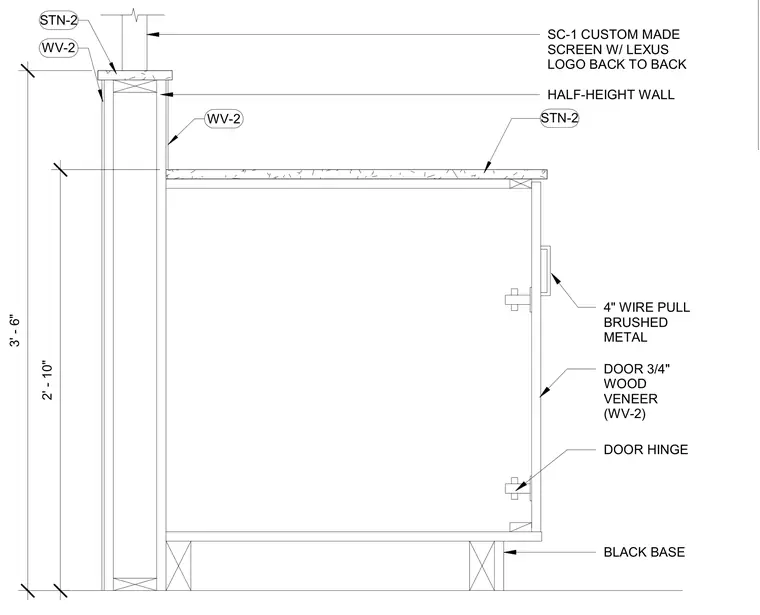

This service writer counter assembly features a half-height wall clad in three-quarter-inch wood veneer designated as WV-2, topped with stone finish STN-2. A custom back-to-back screen designated SC-1 with a Lexus logo extends above the partition. The casework includes a cabinet door fabricated from three-quarter-inch wood veneer, hung on standard door hinges and operated with a four-inch brushed metal wire pull. The counter is supported on a black base with overall height dimensions of 3 feet 6 inches and a transaction counter height of 2 feet 10 inches.
4" WIRE PULL BRUSHED METAL HALF-HEIGHT WALL BLACK BASE DOOR HINGE DOOR 3/4" WOOD VENEER (WV-2) SC-1 CUSTOM MADE SCREEN W/ LEXUS LOGO BACK TO BACK 2' - 10" 3' - 6" STN-2 STN-2 WV-2 WV-2
