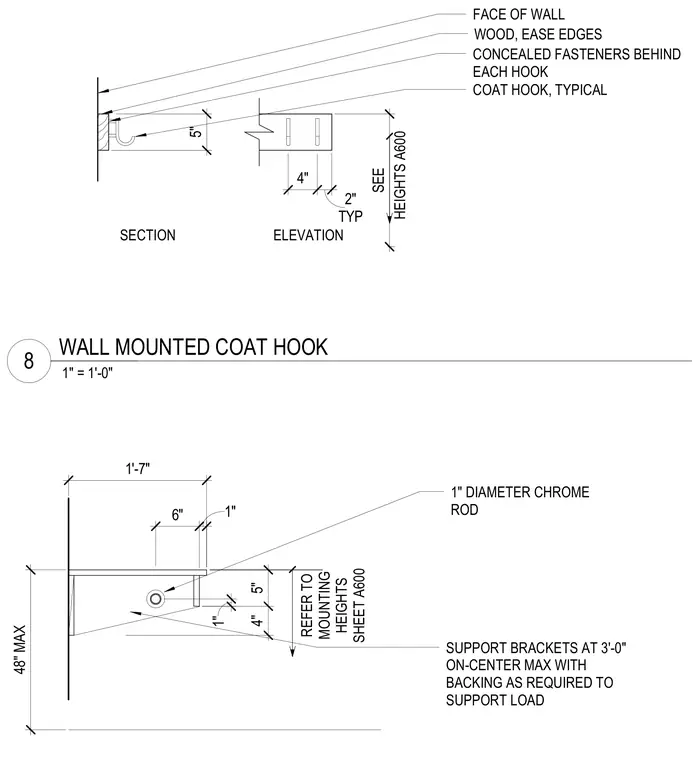

A one-inch diameter chrome rod spans across wood support brackets spaced at three feet on center maximum. Wood components feature eased edges and are secured to the face of the wall with concealed fasteners behind each hook. Backing is provided as required behind the wall to support the imposed load. Mounting heights are coordinated per sheet A600.
1'-7" 6" 1" 1" 4" 5" REFER TO MOUNTING HEIGHTS SHEET A600 SUPPORT BRACKETS AT 3'-0" ON-CENTER MAX WITH BACKING AS REQUIRED TO SUPPORT LOAD 1" DIAMETER CHROME ROD 48" MAX COAT HOOK, TYPICAL CONCEALED FASTENERS BEHIND EACH HOOK WOOD, EASE EDGES FACE OF WALL 4" TYP 2" ELEVATION SECTION 5" SEE HEIGHTS A600 1" = 1'-0" 8 WALL MOUNTED COAT HOOK
