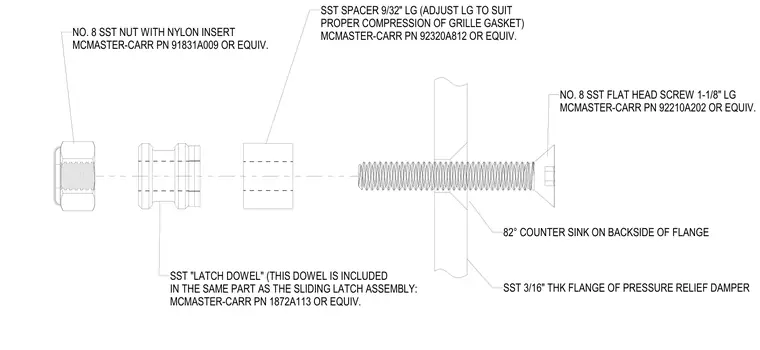

A stainless steel latch dowel assembly secures the pressure relief damper flange. The assembly is fastened using a number 8 stainless steel flat head screw, 1-1/8 inch length, passing through an 82-degree countersink on the backside of the 3/16-inch thick damper flange. A 9/32-inch length stainless steel spacer is included, with the length adjusted to suit proper compression of the grille gasket. A stainless steel latch dowel, included with the sliding latch assembly, connects alongside a number 8 stainless steel nut with a nylon insert.
NO. 8 SST FLAT HEAD SCREW 1-1/8" LG MCMASTER-CARR PN 92210A202 OR EQUIV. SST SPACER 9/32" LG (ADJUST LG TO SUIT PROPER COMPRESSION OF GRILLE GASKET) MCMASTER-CARR PN 92320A812 OR EQUIV. SST "LATCH DOWEL" (THIS DOWEL IS INCLUDED IN THE SAME PART AS THE SLIDING LATCH ASSEMBLY: MCMASTER-CARR PN 1872A113 OR EQUIV. NO. 8 SST NUT WITH NYLON INSERT MCMASTER-CARR PN 91831A009 OR EQUIV. SST 3/16" THK FLANGE OF PRESSURE RELIEF DAMPER 82° COUNTER SINK ON BACKSIDE OF FLANGE
