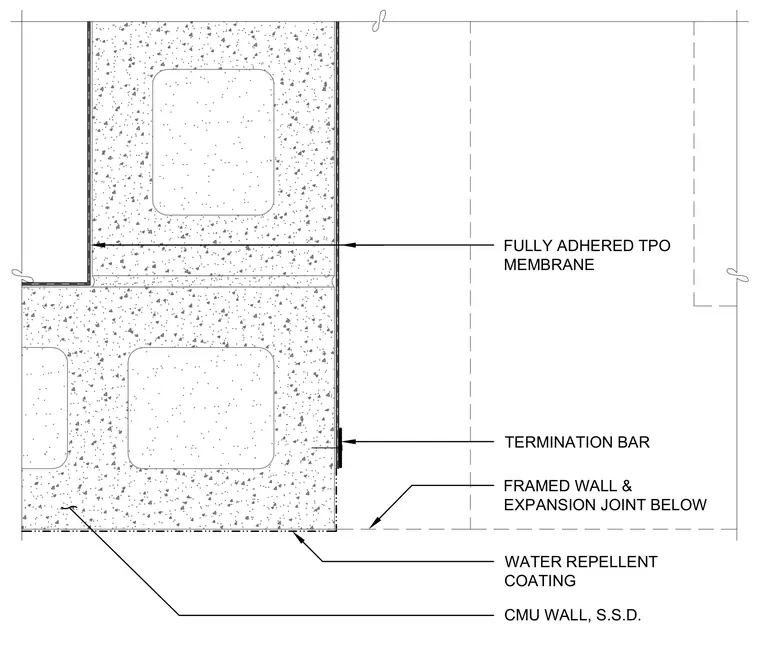

A fully adhered thermoplastic polyolefin membrane terminates against a concrete masonry unit wall and is secured at its base by a metal termination bar. The concrete masonry unit wall receives an exterior water repellent coating. A framed wall and expansion joint are located below the roof termination assembly.
WATER REPELLENT COATING CMU WALL, S.S.D. FRAMED WALL & EXPANSION JOINT BELOW TERMINATION BAR FULLY ADHERED TPO MEMBRANE
