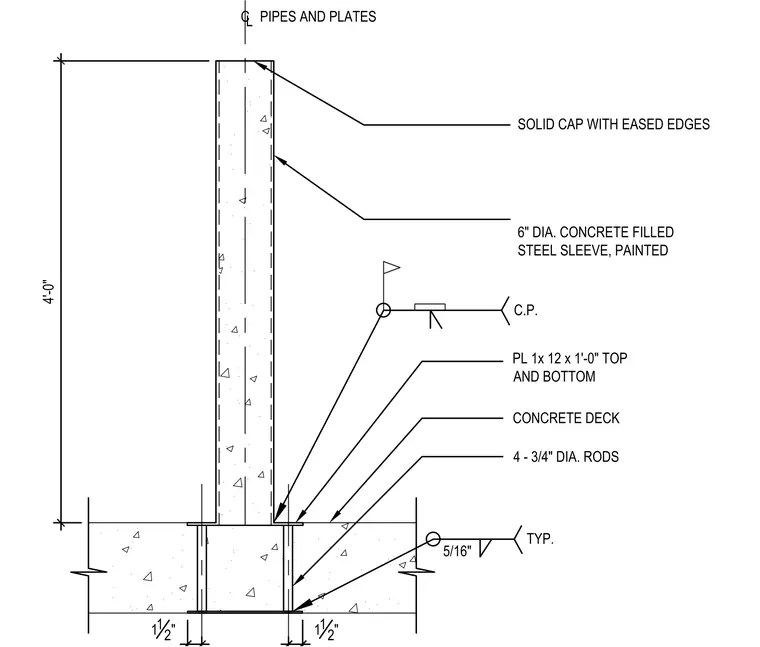

A six-inch diameter concrete-filled steel sleeve with a painted finish stands four feet tall above a concrete deck. The bollard features a solid cap with eased edges at the top. Top and bottom plates measuring one inch by twelve inches by one foot zero inches anchor the assembly. Four three-quarter-inch diameter rods secure the bollard through the concrete deck, welded with five-sixteenth-inch typical fillet welds.
5/16" TYP. PL 1x 12 x 1'-0" TOP AND BOTTOM 4 - 3/4" DIA. RODS CONCRETE DECK C.P. 6" DIA. CONCRETE FILLED STEEL SLEEVE, PAINTED SOLID CAP WITH EASED EDGES C PIPES AND PLATES L 4'-0" 112" 112"
