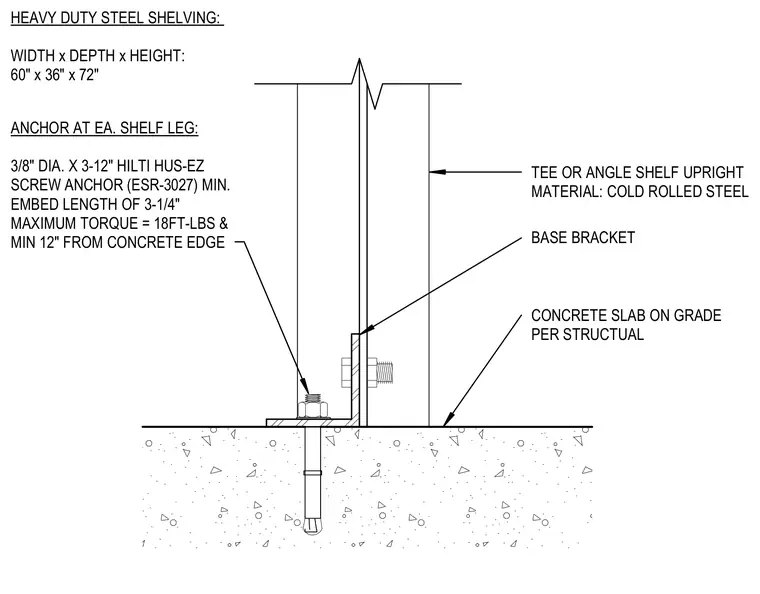

The cold-rolled steel tee or angle shelf upright connects to a base bracket secured directly to a concrete slab on grade. Each shelf leg is anchored using a three-eighths-inch diameter by three and a half-inch Hilti HUS-EZ screw anchor requiring a minimum embed length of three and a quarter inches. The installation specifies a maximum torque of eighteen foot-pounds and a minimum distance of twelve inches from the concrete edge.
BASE BRACKET CONCRETE SLAB ON GRADE PER STRUCTUAL TEE OR ANGLE SHELF UPRIGHT MATERIAL: COLD ROLLED STEEL ANCHOR AT EA. SHELF LEG: 3/8" DIA. X 3-12" HILTI HUS-EZ SCREW ANCHOR (ESR-3027) MIN. EMBED LENGTH OF 3-1/4" MAXIMUM TORQUE = 18FT-LBS & MIN 12" FROM CONCRETE EDGE HEAVY DUTY STEEL SHELVING: WIDTH x DEPTH x HEIGHT: 60" x 36" x 72"
