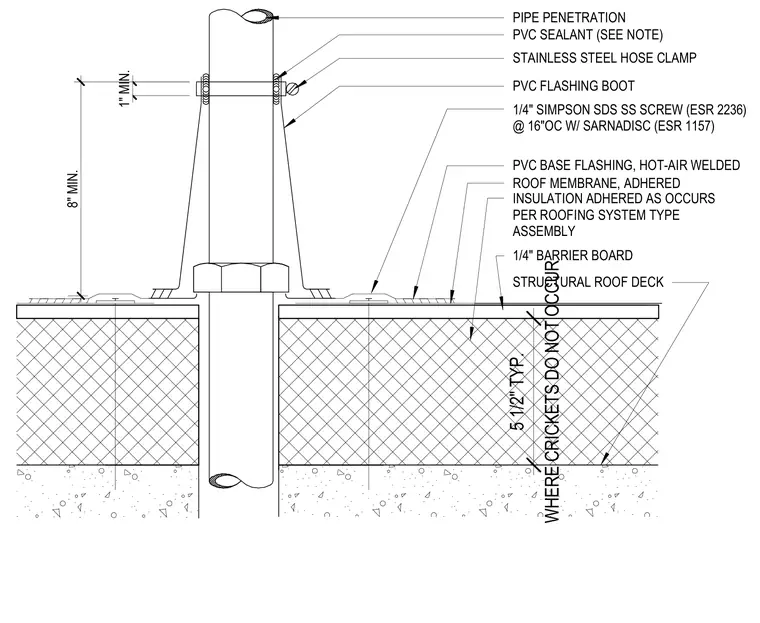

A cone flashing assembly at a roof pipe penetration utilizes a PVC flashing boot fitted over the pipe penetration, secured at the top with a stainless steel hose clamp over a PVC sealant bead maintaining a one-inch minimum clearance. The boot extends down to a hot-air welded PVC base flashing anchored to the adhered roof membrane and insulation assembly. The assembly is fastened to the structural roof deck and barrier board using quarter-inch Simpson SDS stainless steel screws with Sarnadisc plates spaced at sixteen inches on center where crickets do not occur.
1" MIN. 8" MIN. PIPE PENETRATION PVC SEALANT (SEE NOTE) STAINLESS STEEL HOSE CLAMP PVC FLASHING BOOT PVC BASE FLASHING, HOT-AIR WELDED ROOF MEMBRANE, ADHERED INSULATION ADHERED AS OCCURS PER ROOFING SYSTEM TYPE ASSEMBLY 1/4" BARRIER BOARD STRUCTURAL ROOF DECK 1/4" SIMPSON SDS SS SCREW (ESR 2236) @ 16"OC W/ SARNADISC (ESR 1157) WHERE CRICKETS DO NOT OCCUR 5 1/2" TYP. CONTAMINATED AND OR COUNTERFLASHING FASCIA IS LESS THAN 4 INCHES
