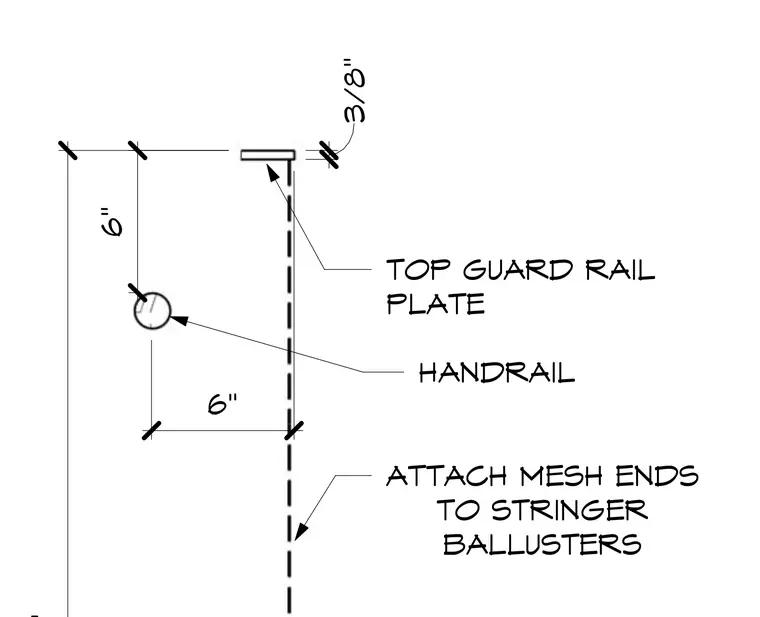

Connection of stair safety mesh to stringer balusters beneath a top guardrail plate. A handrail is positioned six inches below the top guardrail plate. Dimensions indicate a three-eighths inch spacing for the mesh attachment and specific clearances for the handrail relative to the baluster line.
