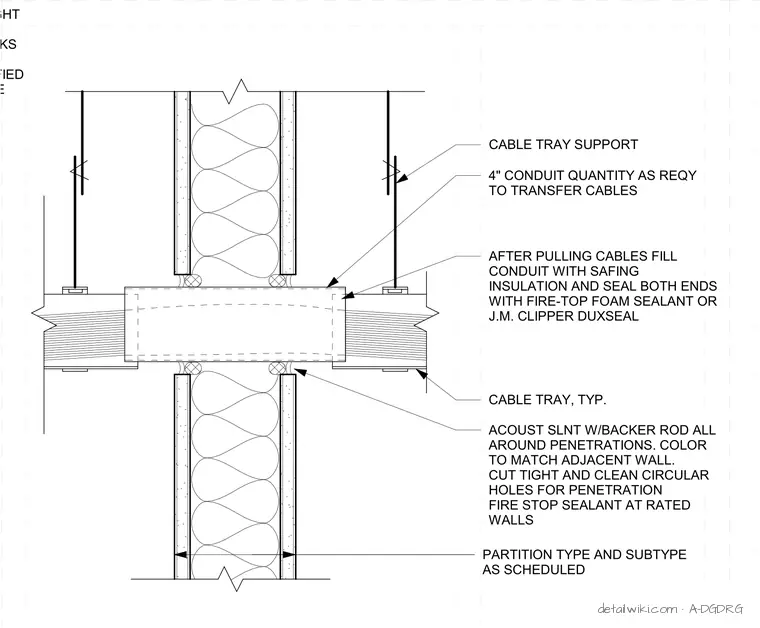

A cable tray and four-inch conduit pass through a scheduled partition type, supported by adjacent cable tray hangers. Acoustic sealant with backer rod is applied all around the penetration with color matched to the adjacent wall. Circular holes are cut tight and clean for the penetration. After pulling cables, conduits are filled with safing insulation and sealed at both ends with fire-top foam sealant or J.M. Clipper Duxseal, with fire stop sealant applied at rated walls.
PARTITION TYPE AND SUBTYPE AS SCHEDULED CABLE TRAY SUPPORT CABLE TRAY, TYP. 4" CONDUIT QUANTITY AS REQY TO TRANSFER CABLES ACOUST SLNT W/BACKER ROD ALL AROUND PENETRATIONS. COLOR TO MATCH ADJACENT WALL. CUT TIGHT AND CLEAN CIRCULAR HOLES FOR PENETRATION FIRE STOP SEALANT AT RATED WALLS AFTER PULLING CABLES FILL CONDUIT WITH SAFING INSULATION AND SEAL BOTH ENDS WITH FIRE-TOP FOAM SEALANT OR J.M. CLIPPER DUXSEAL 4 1/2 IN. MIN. REINFORCED LIGHWEIGHT OR UL CLASSIFIED CONCRETE BLOCKS OR 6 IN. MIN. CLASSIFIED UL CLASSIFIED HOLLOW CORE PRECAST CONCRETE
