About this detail

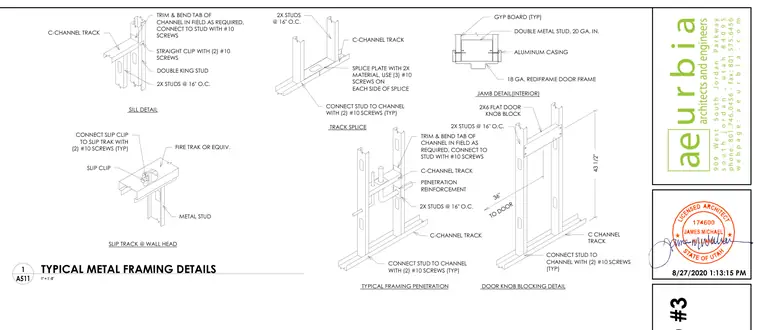

These architectural details illustrate standard cold-formed steel and wood blocking configurations for interior and exterior partitions. The wall head slip track detail features a slip clip attached to a fire track or equivalent with two number ten screws on each side, tying into vertical metal studs. The sill detail shows double king studs and a c-channel track with trimmed and bent tabs connected to studs using number ten screws. The track splice detail utilizes a splice plate with two-inch wood material secured by three number ten screws on each side of the splice. The typical framing penetration detail provides reinforcement around wall openings using c-channel tracks and wood studs at sixteen inches on center. The interior door jamb and door knob blocking details incorporate a two-by-six flat wood block positioned thirty-six inches to the door and forty-three and a half inches vertically, tied into twenty gauge double metal studs, an eighteen gauge rediframe door frame, and gypsum board with aluminum casing.
