Architectural · A-DG8WB

Curtain Wall Sill and Cornice Drain Transition Detail

Materials

Concrete Steel Timber / Wood Gypsum / Drywall

Elements

Walls Curtain Walls Floors / Slabs Waterproofing / Flashing Drainage Site / Paving

Connections

HSS Connection

About this detail

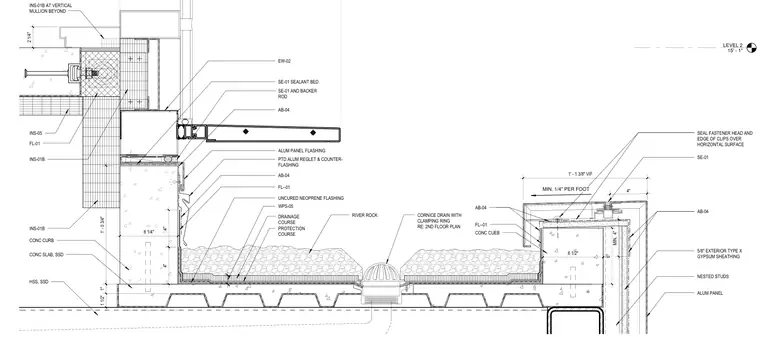

A curtain wall sill transitions over a concrete slab and metal deck with a built-in concrete curb and cornice drain featuring a clamping ring. The assembly incorporates nested studs, five-eighths-inch exterior Type X gypsum sheathing, and aluminum panels tied back with fastener clips sealed over horizontal surfaces. Waterproofing layers include uncured neoprene flashing, painted aluminum reglet and counter-flashing, drainage and protection courses, and a river rock ballast bed. Sealant beds and backer rods provide continuous weather sealing at joints.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
