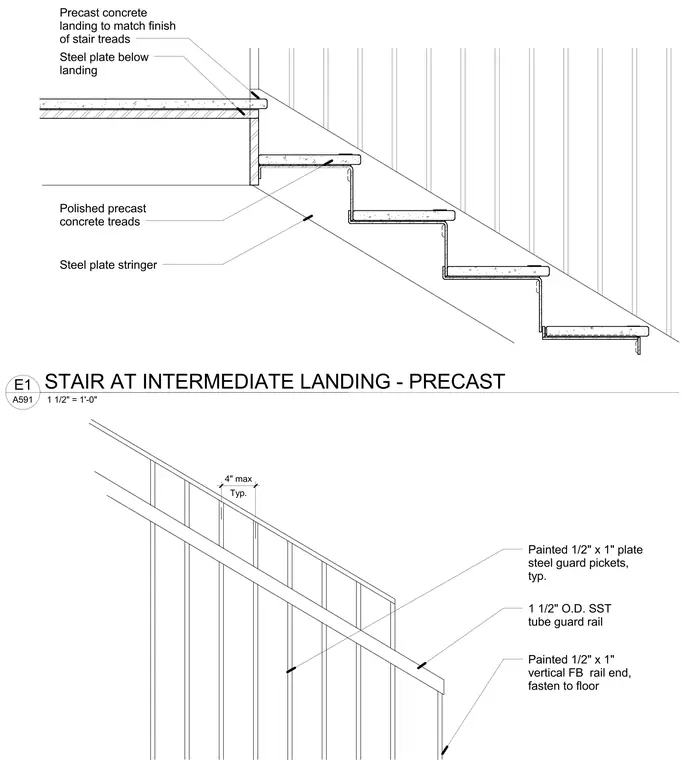

A precast concrete intermediate landing with a matching finish to the stair treads is supported by a steel plate below the landing. Polished precast concrete treads rest on a steel plate stringer assembly. The guardrail features a one and one-half inch outside diameter stainless steel tube guard rail mounted on painted one-half inch by one-inch plate steel guard pickets spaced at a typical four-inch maximum distance. A painted one-half inch by one-inch vertical flat bar rail end fastens directly to the floor.
1 1/2" O.D. SST tube guard rail Painted 1/2" x 1" plate steel guard pickets, typ. Typ. 4" max Painted 1/2" x 1" vertical FB rail end, fasten to floor Precast concrete landing to match finish of stair treads Steel plate below landing Steel plate stringer Polished precast concrete treads 1 1/2" = 1'-0" A591 E1 STAIR AT INTERMEDIATE LANDING - PRECAST
