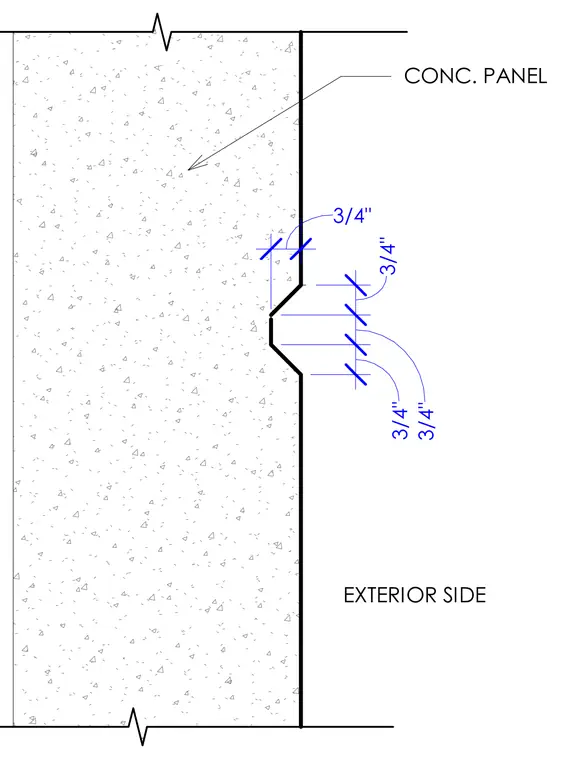

An architectural reveal detail formed into the exterior face of a concrete wall panel features three-quarter-inch dimensions defining the width and depth of the recessed profile.
EXTERIOR SIDE CONC. PANEL 3/4" 3/4" 3/4" 3/4"
