Sloped Curtain Wall At Stem Wall

Materials

Elements

Beams Walls Curtain Walls Stem Walls Insulation Connections / Plates

About this detail

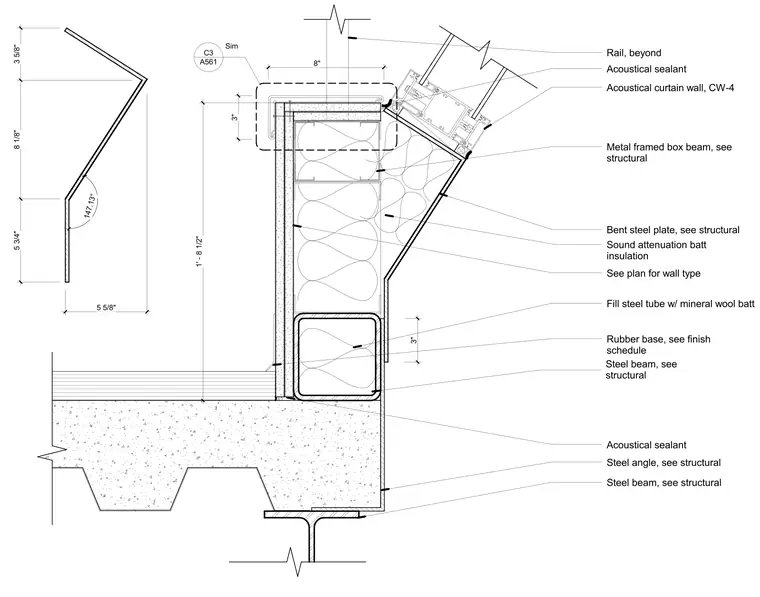

An acoustical curtain wall designated CW-4 connects to a sloped metal-framed box beam backed by sound attenuation batt insulation. The structural assembly incorporates a bent steel plate and steel framing detailed per structural drawings. A steel tube filled with mineral wool batt rests above a steel beam and concrete stem wall assembly. Acoustical sealant is applied at joints, and a rubber base is provided per the finish schedule.
