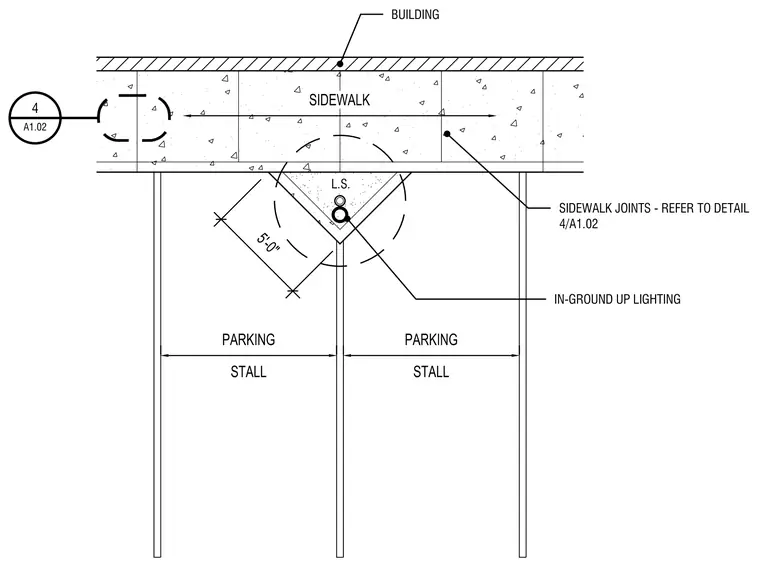

An in-ground up-lighting fixture is positioned within a dedicated cutout in the sidewalk adjacent to the building edge. The layout maintains a five-foot clearance from the building face to the lighting location. Sidewalk joint configurations reference detail 4 on sheet A1.02. The assembly is situated between adjacent parking stalls.
PARKING STALL PARKING STALL 5'-0" A1.02 4 BUILDING SIDEWALK L.S. SIDEWALK JOINTS - REFER TO DETAIL 4/A1.02 IN-GROUND UP LIGHTING
