Gypsum wallboard partitions receive a surface finish that runs behind the corner guard. A one and one-half inch corner guard is adhered at the top of the wall finish where indicated. Wall types are sized per floor plan.

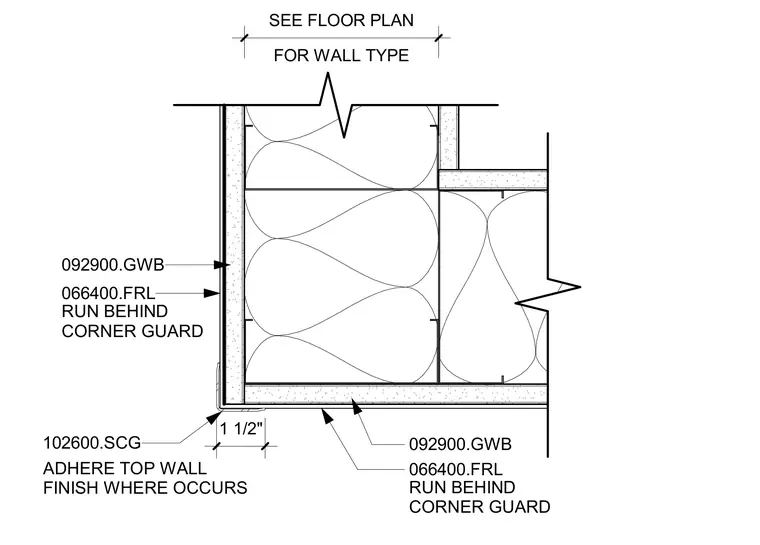

FOR WALL TYPE SEE FLOOR PLAN 092900.GWB 092900.GWB RUN BEHIND CORNER GUARD RUN BEHIND CORNER GUARD 066400.FRL 066400.FRL ADHERE TOP WALL FINISH WHERE OCCURS 1 1/2" 102600.SCG
