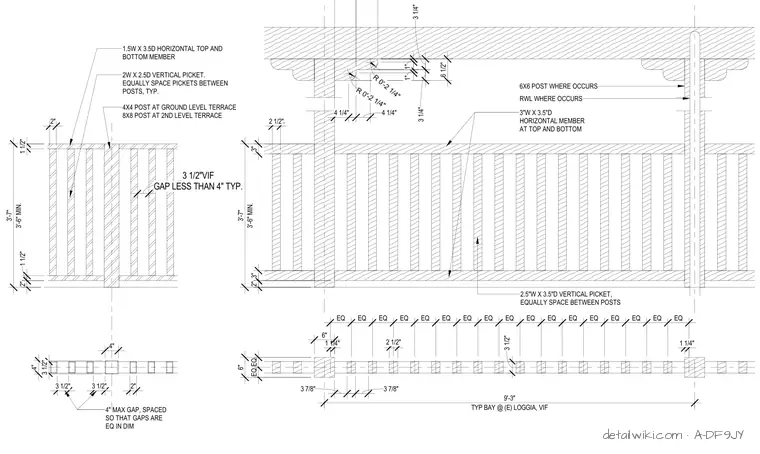

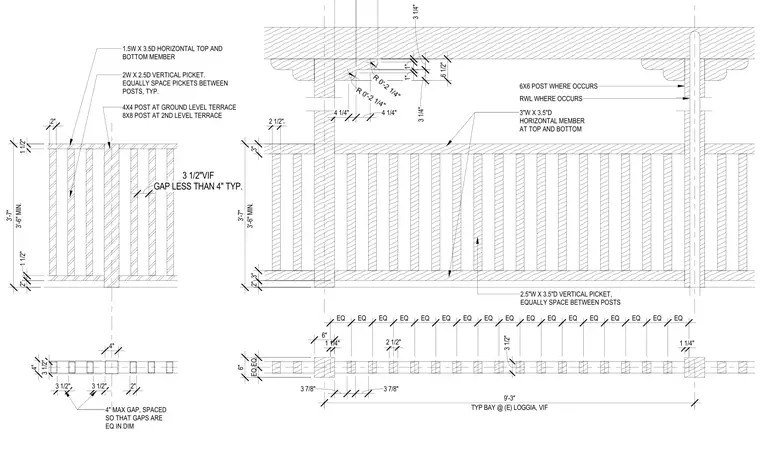

This guardrail assembly consists of vertical pickets and horizontal top and bottom members supported by timber posts. At the ground level terrace, the assembly utilizes four-by-four posts, while the second level terrace uses eight-by-eight posts. The pickets are spaced equally between posts with a typical gap of three and one-half inches, verified in field, ensuring all gaps remain less than four inches. Horizontal members are specified as three inches wide by three and one-half inches deep. The assembly includes six-by-six posts and rain water leaders where they occur, with typical bay widths of nine feet three inches at the existing loggia.
