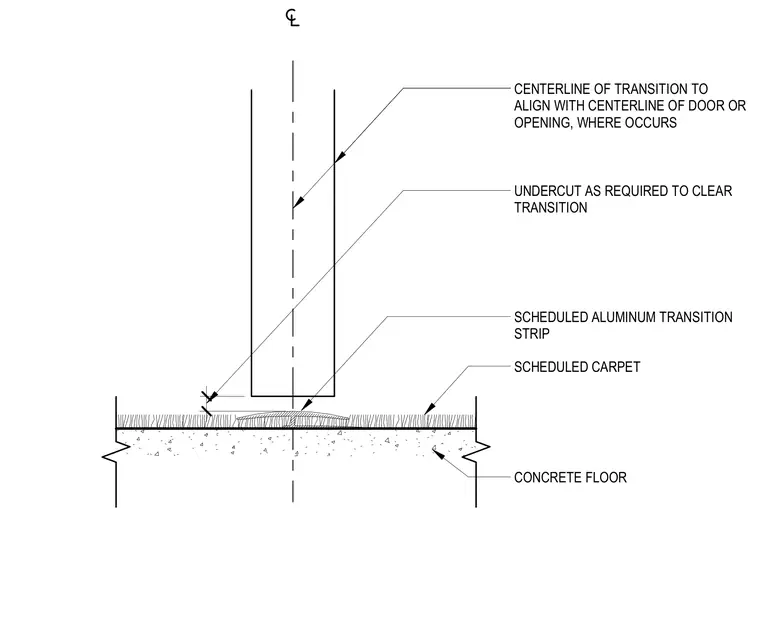

A scheduled aluminum transition strip spans between scheduled carpet finishes installed over a concrete floor slab. The centerline of the transition aligns with the centerline of the door or opening where applicable. The door or partition above is undercut as required to clear the transition assembly.
SCHEDULED ALUMINUM TRANSITION STRIP SCHEDULED CARPET UNDERCUT AS REQUIRED TO CLEAR TRANSITION CENTERLINE OF TRANSITION TO ALIGN WITH CENTERLINE OF DOOR OR OPENING, WHERE OCCURS CONCRETE FLOOR
