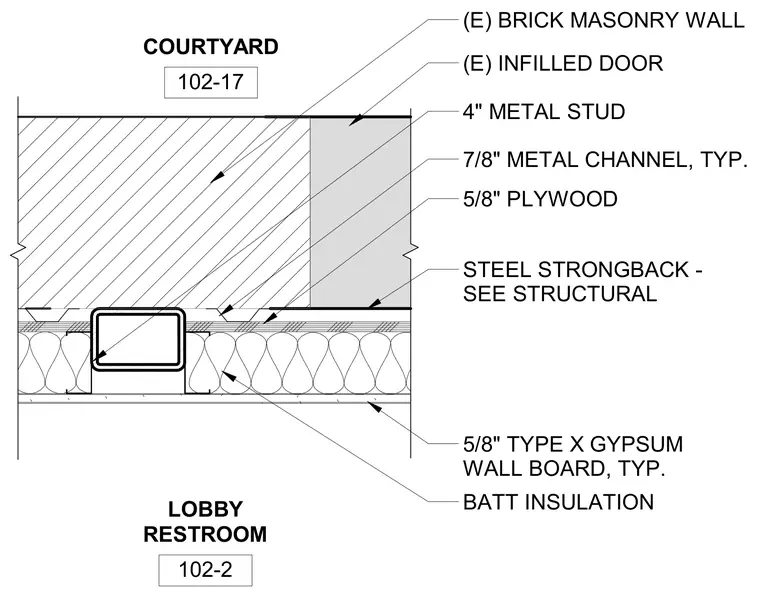

An interior metal stud partition frames against an existing brick masonry wall containing an infilled door opening. The assembly features a 4-inch metal stud backed by a steel strongback sized per structural drawings. A 7/8-inch metal channel secures the framing layers, which include 5/8-inch plywood and batt insulation within the stud cavity. The interior finish consists of 5/8-inch Type X gypsum wall board applied typically on both sides.
COURTYARD 102-17 (E) BRICK MASONRY WALL (E) INFILLED DOOR BATT INSULATION 5/8" TYPE X GYPSUM WALL BOARD, TYP. 4" METAL STUD 7/8" METAL CHANNEL, TYP. LOBBY RESTROOM 102-2 STEEL STRONGBACK - SEE STRUCTURAL 5/8" PLYWOOD
