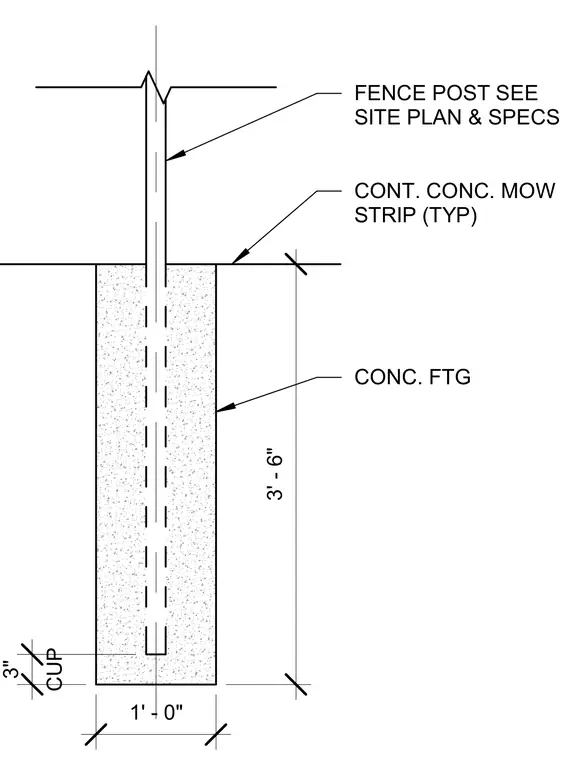

A vertical fence post is embedded into a continuous concrete footing with a depth of three feet six inches and a width of one foot. A continuous concrete mow strip extends horizontally at grade around the base of the post. The bottom of the post features a hooked or turned-up anchorage embedded three inches above the base of the footing.
1' - 0" CUP 3" 3' - 6" CONC. FTG CONT. CONC. MOW STRIP (TYP) FENCE POST SEE SITE PLAN & SPECS
