Architectural · A-DF3MZ

Overhead Coiling Door Jamb at Metal Panel Wall

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Walls Doors Facades / Cladding Insulation Roof / Floor Openings

Connections

Welded Connection

About this detail

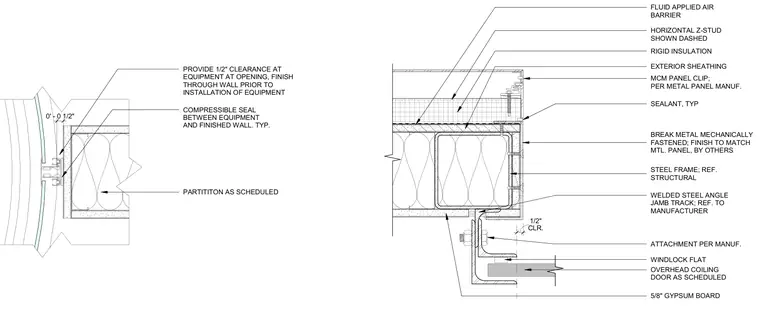

An overhead coiling door jamb is anchored adjacent to a steel frame wall assembly using a welded steel angle and manufacturer-specified attachment hardware. The wall buildup consists of an interior layer of five-eighths-inch gypsum board, exterior sheathing, rigid insulation, horizontal Z-studs, and a fluid-applied air barrier beneath metal composite material panels. A one-half-inch clear break metal, finished to match the metal panel, is mechanically fastened at the jamb transition alongside a compressible seal. A half-inch clearance is maintained at the equipment opening with wall finishes completed prior to equipment installation.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
