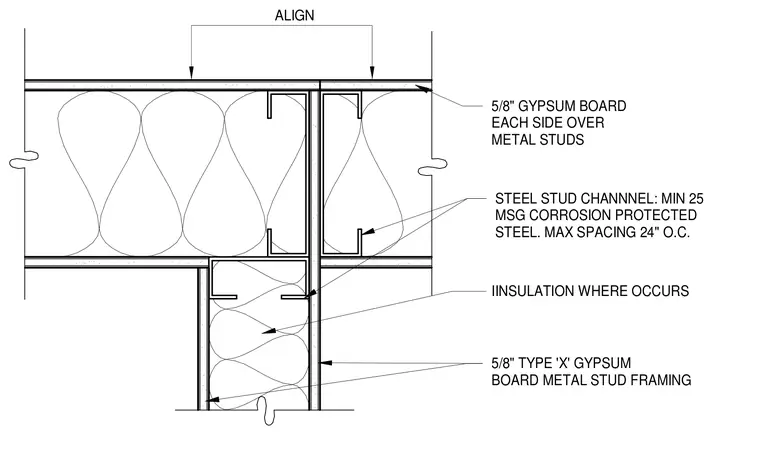

A cold-formed steel stud partition framing junction. The assembly consists of steel channel studs of minimum twenty-five minimum specified gauge corrosion-protected steel spaced at a maximum of twenty-four inches on center. Each side is surfaced with five-eighths-inch gypsum board, with five-eighths-inch type X gypsum board used for metal stud framing where specified. Insulation is installed within the stud cavities where indicated.
I INSULATION WHERE OCCURS 5/8" TYPE 'X' GYPSUM BOARD METAL STUD FRAMING 5/8" GYPSUM BOARD EACH SIDE OVER METAL STUDS ALIGN STEEL STUD CHANNNEL: MIN 25 MSG CORROSION PROTECTED STEEL. MAX SPACING 24" O.C.
