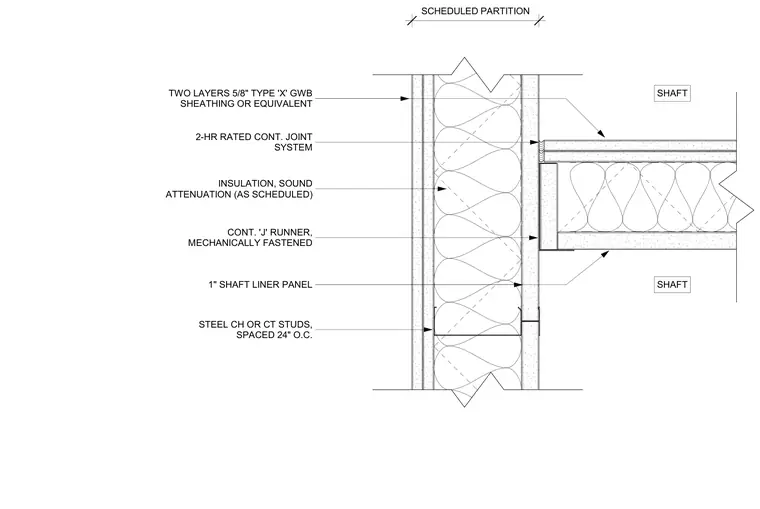

This two-hour rated shaftwall partition assembly terminates at a continuous partition using steel CH or CT studs spaced at twenty-four inches on center. The assembly incorporates two layers of five-eighths-inch Type X gypsum wallboard sheathing on one side and a one-inch shaft liner panel on the other. Sound attenuation insulation is installed within the cavity as scheduled. A continuous J-runner is mechanically fastened to anchor the framing, and a continuous two-hour rated joint system is provided at the junction.
INSULATION, SOUND ATTENUATION (AS SCHEDULED) STEEL CH OR CT STUDS, SPACED 24" O.C. TWO LAYERS 5/8" TYPE 'X' GWB SHEATHING OR EQUIVALENT 1" SHAFT LINER PANEL 2-HR RATED CONT. JOINT SYSTEM CONT. 'J' RUNNER, MECHANICALLY FASTENED SCHEDULED PARTITION SHAFT SHAFT
