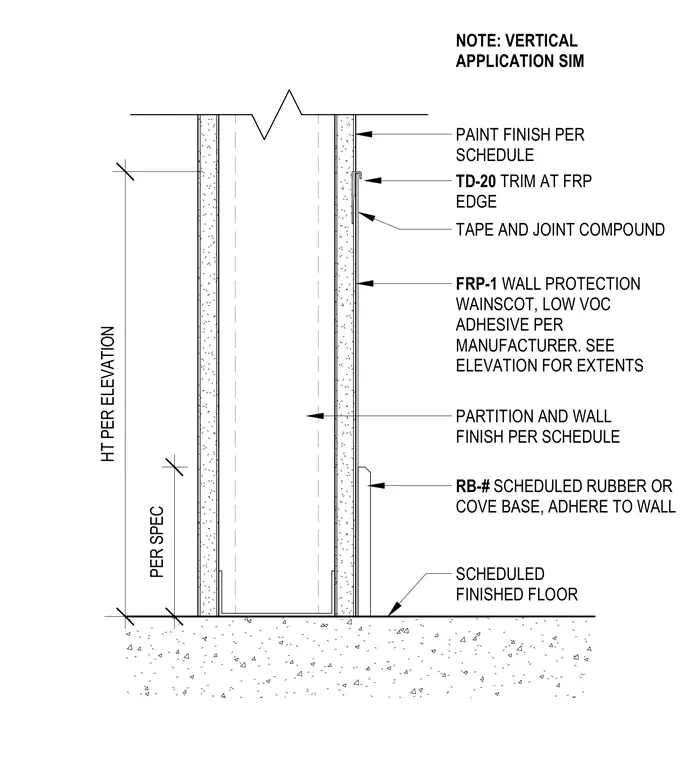

An interior partition wall receives an FRP-1 wall protection wainscot adhered with low VOC adhesive per manufacturer instructions. A TD-20 trim piece finishes the upper edge of the fiber-reinforced plastic panel against gypsum wallboard treated with tape and joint compound. The upper wall area receives a paint finish per schedule. A scheduled rubber or cove base adheres to the wall at the finished floor level.
PARTITION AND WALL FINISH PER SCHEDULE TD-20 TRIM AT FRP EDGE FRP-1 WALL PROTECTION WAINSCOT, LOW VOC ADHESIVE PER MANUFACTURER. SEE ELEVATION FOR EXTENTS TAPE AND JOINT COMPOUND HT PER ELEVATION PAINT FINISH PER SCHEDULE RB-# SCHEDULED RUBBER OR COVE BASE, ADHERE TO WALL SCHEDULED FINISHED FLOOR PER SPEC NOTE: VERTICAL APPLICATION SIM
