Architectural · A-DEFSA

Millwork Detail at Trash Enclosure Cabinet and Chute

Materials

Elements

About this detail

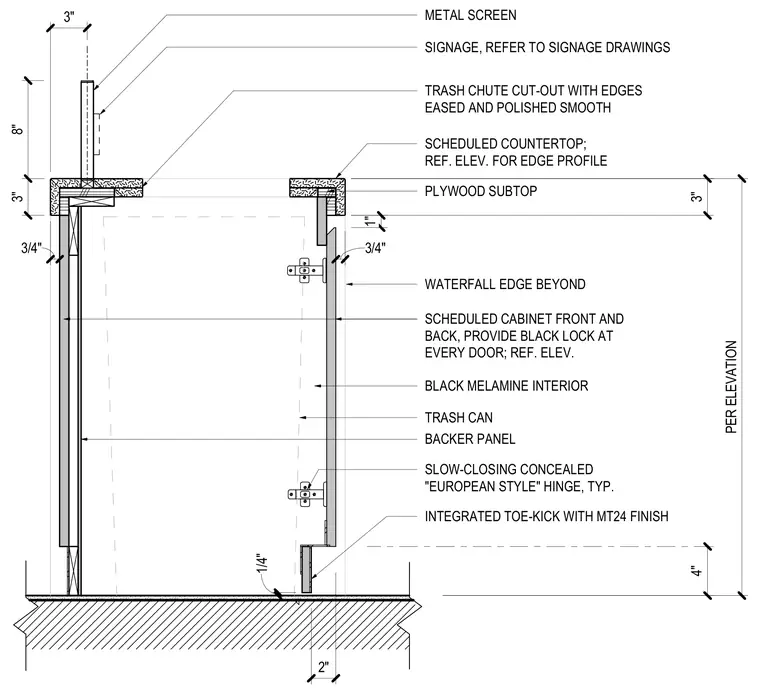

This architectural millwork detail shows a custom trash enclosure cabinet featuring a scheduled countertop on a plywood subtop, supported by a backer panel and black melamine interior. The cabinet doors are equipped with slow-closing concealed European-style hinges and a black lock, with an integrated toe-kick featuring an MT24 finish at the base. A trash chute cutout with eased and polished edges is incorporated into the top surface, adjacent to a vertical metal screen with signage.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
