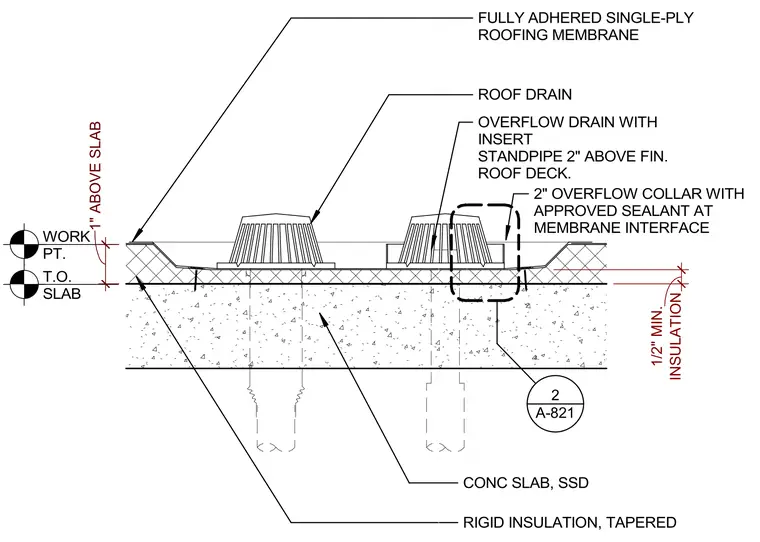

The assembly consists of a concrete slab topped with tapered rigid insulation and a fully adhered single-ply roofing membrane. A standard roof drain and an overflow drain with an insert standpipe are set into the concrete deck. The overflow drain features a standpipe positioned two inches above the finished roof deck along with a two-inch overflow collar sealed with an approved sealant at the membrane interface. Insulation maintains a minimum thickness of one-half inch and extends one inch above the slab at the work point.
OVERFLOW DRAIN WITH INSERT STANDPIPE 2" ABOVE FIN. ROOF DECK. ROOF DRAIN CONC SLAB, SSD RIGID INSULATION, TAPERED FULLY ADHERED SINGLE-PLY ROOFING MEMBRANE WORK PT. INSULATION 1/2" MIN. 1" ABOVE SLAB 2" OVERFLOW COLLAR WITH APPROVED SEALANT AT MEMBRANE INTERFACE A-821 2 T.O. SLAB
