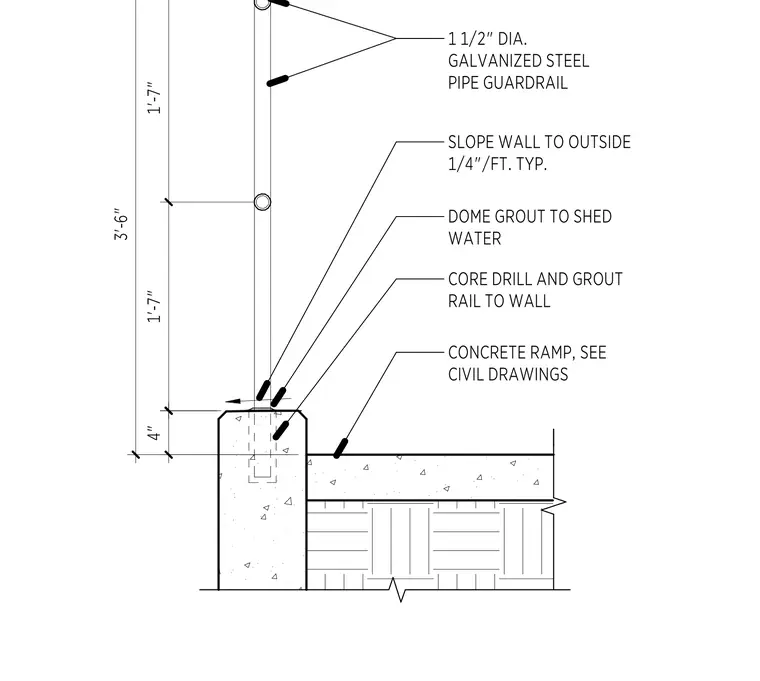

The assembly consists of a one and one-half inch diameter galvanized steel pipe guardrail post set into a concrete wall. The post is installed via core drilling into the concrete, with the void filled with grout to secure the rail. The top of the concrete wall is sloped to the outside at a rate of one-quarter inch per foot, and the grout is domed to shed water away from the post. The adjacent concrete ramp is constructed per civil drawings.
