Architectural · A-DE64Q

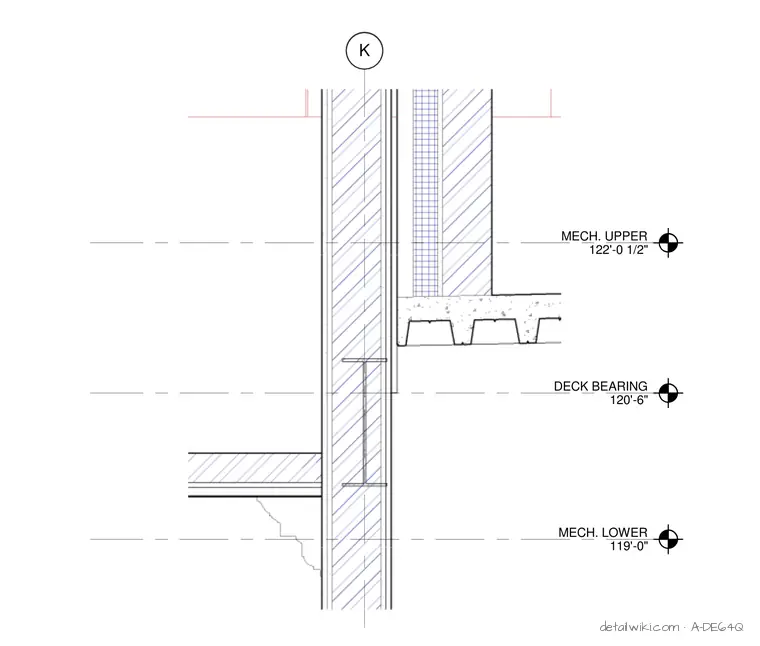

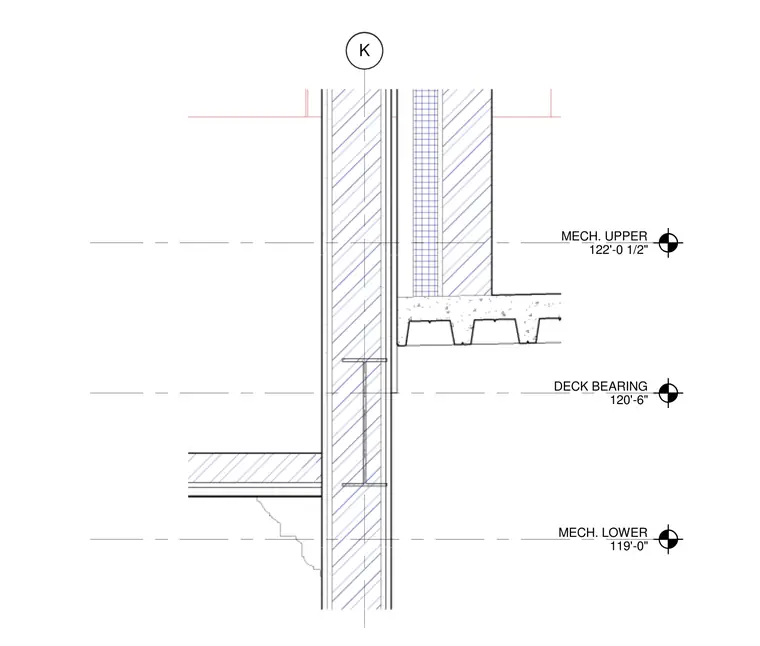

Mechanical Platform Detail

Scale: SCALE: 1" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Materials

Glass / Glazing

Elements

Decks Floors / Slabs

Text on the drawing

DECK BEARING 120'-6" K MECH. UPPER 122'-0 1/2" MECH. LOWER 119'-0"
