A flush wood door interfaces with a concealed frame head assembly set within a seven-and-a-quarter-inch metal stud partition. The surrounding wall is constructed from five-eighths-inch gypsum board mounted on six-inch metal studs spaced at sixteen inches on center. Mud and feather techniques finish the drywall transition directly over the concealed frame.

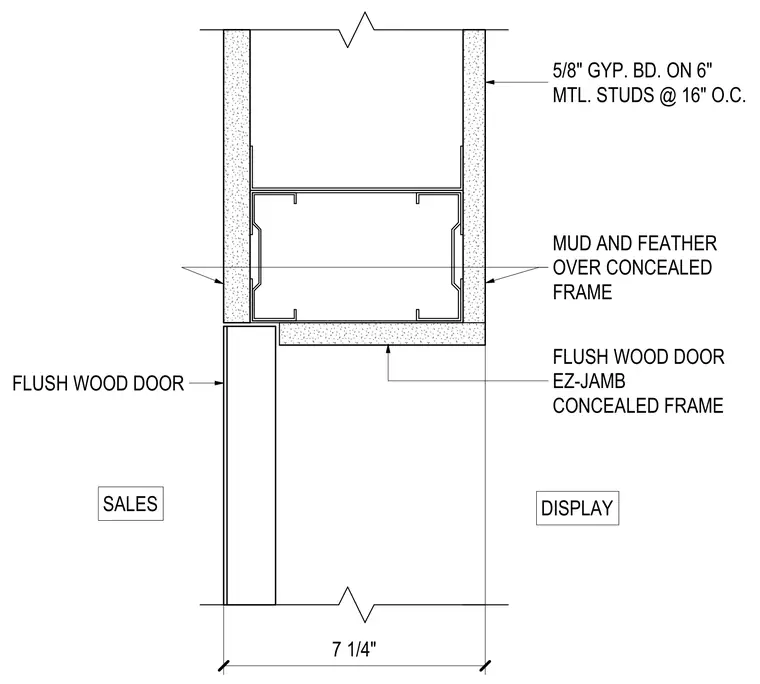

FLUSH WOOD DOOR EZ-JAMB CONCEALED FRAME 7 1/4" DISPLAY SALES MUD AND FEATHER OVER CONCEALED FRAME 5/8" GYP. BD. ON 6" MTL. STUDS @ 16" O.C. FLUSH WOOD DOOR
