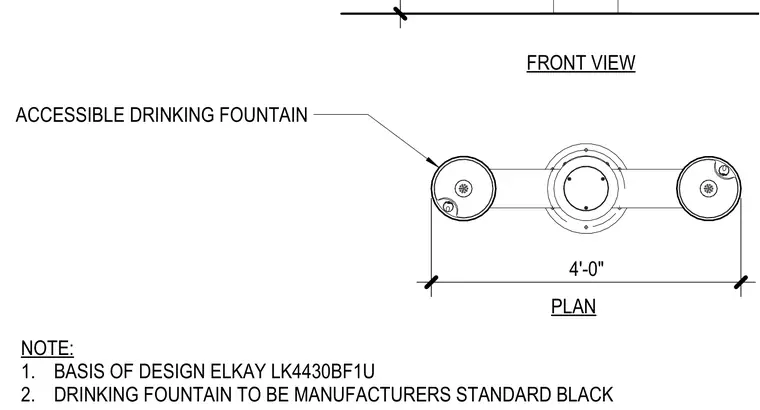

An accessible drinking fountain is installed with a four-foot overall width configuration. The basis of design is an Elkay model LK4430BF1U drinking fountain specified with a standard black manufacturer finish. Front elevation and plan views show the orientation and dimensional layout of the fixture.
FRONT VIEW PLAN ACCESSIBLE DRINKING FOUNTAIN 1. 2. NOTE: BASIS OF DESIGN ELKAY LK4430BF1U DRINKING FOUNTAIN TO BE MANUFACTURERS STANDARD BLACK 4'-0"
