Architectural · A-DDFRS

Counter - Wall Hung - Floating Sink

Materials

Steel Metal (misc.)

Elements

Columns Walls Drainage Millwork / Casework Connections / Plates

Connections

Base Plate / Anchorage HSS Connection Welded Connection Bolted Connection

About this detail

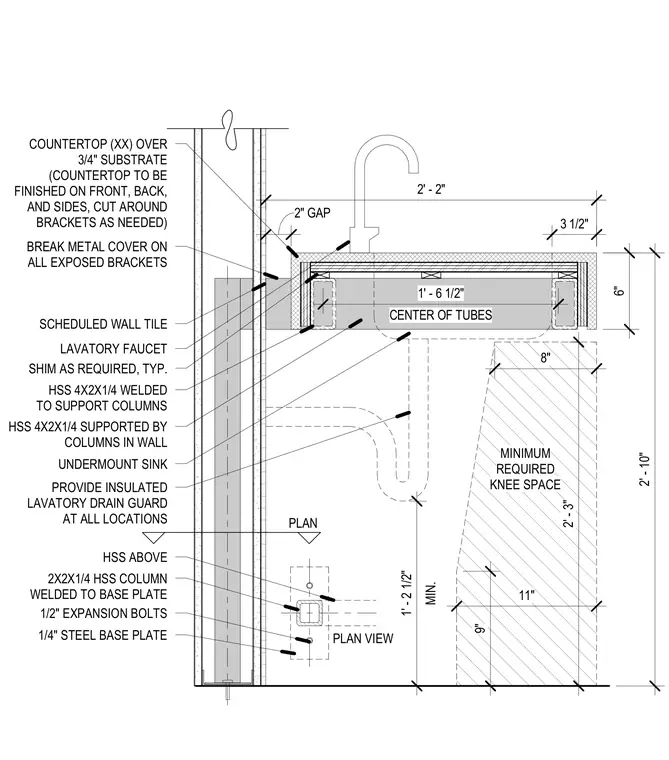

A floating wall-hung sink counter is supported by an HSS 4x2x1/4 structural steel frame welded to support columns concealed within the wall. The wall support columns consist of 2x2x1/4 hollow structural section members welded to a one-quarter-inch steel base plate, which is secured with one-half-inch expansion bolts. Shims are provided as required beneath the base assembly. The countertop features a finished surface over a three-quarter-inch substrate, detailed to be finished on the front, back, and sides while cut around the steel brackets as needed. A break metal cover is installed on all exposed brackets. An undermount sink with a scheduled lavatory faucet is integrated into the assembly, complete with an insulated lavatory drain guard at all locations beneath the counter. Wall tile is applied to the adjacent vertical wall surface, leaving a two-inch gap at the counter junction.
