Structural · A-DDCA3

Steel Braced Frame Gusset Plate Connection at Column and Girder

Materials

Steel

Elements

Beams Connections / Plates

Connections

Gusset Plate Welded Connection

About this detail

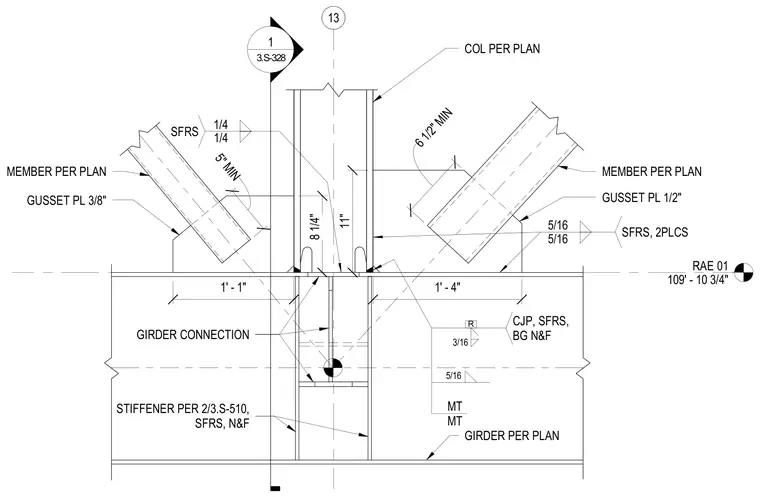

A structural steel braced frame connection details diagonal members framing into a column and continuous horizontal girder. The left diagonal member connects to a three-eighths inch gusset plate with quarter-inch fillet welds, while the right diagonal member connects to a half-inch gusset plate with five-sixteenths inch fillet welds. Internal stiffener plates sized per plan are welded within the girder web using three-sixteenths inch and five-sixteenths inch welds. The column and girder sizes are determined per plan, with specific clearances and setbacks maintained for the gusset plates.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
