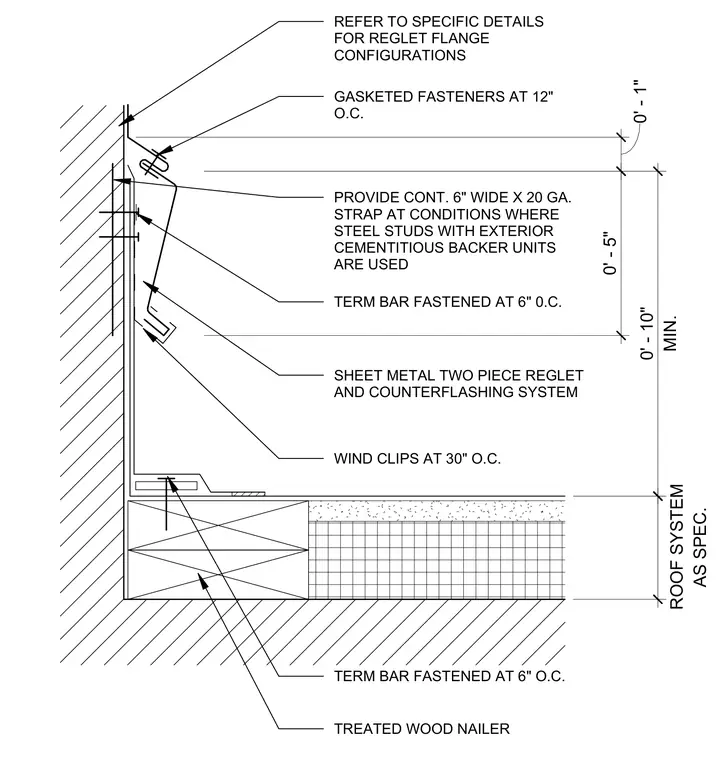

A sheet metal two-piece reglet and counterflashing system is surface-mounted to the vertical wall and secured with a termination bar fastened at six inches on center. Gasketed fasteners are spaced at twelve inches on center near the top flange, while wind clips are spaced at thirty inches on center along the assembly. A continuous six-inch wide by twenty-gauge strap is provided at conditions utilizing steel studs with exterior cementitious backer units. The counterflashing terminates above a treated wood nailer and the specified roof system.
AS SPEC. ROOF SYSTEM 0' - 1" 0' - 5" MIN. 0' - 10" REFER TO SPECIFIC DETAILS FOR REGLET FLANGE CONFIGURATIONS GASKETED FASTENERS AT 12" O.C. PROVIDE CONT. 6" WIDE X 20 GA. STRAP AT CONDITIONS WHERE STEEL STUDS WITH EXTERIOR CEMENTITIOUS BACKER UNITS ARE USED TERM BAR FASTENED AT 6" 0.C. SHEET METAL TWO PIECE REGLET AND COUNTERFLASHING SYSTEM WIND CLIPS AT 30" O.C. TERM BAR FASTENED AT 6" O.C. TREATED WOOD NAILER
