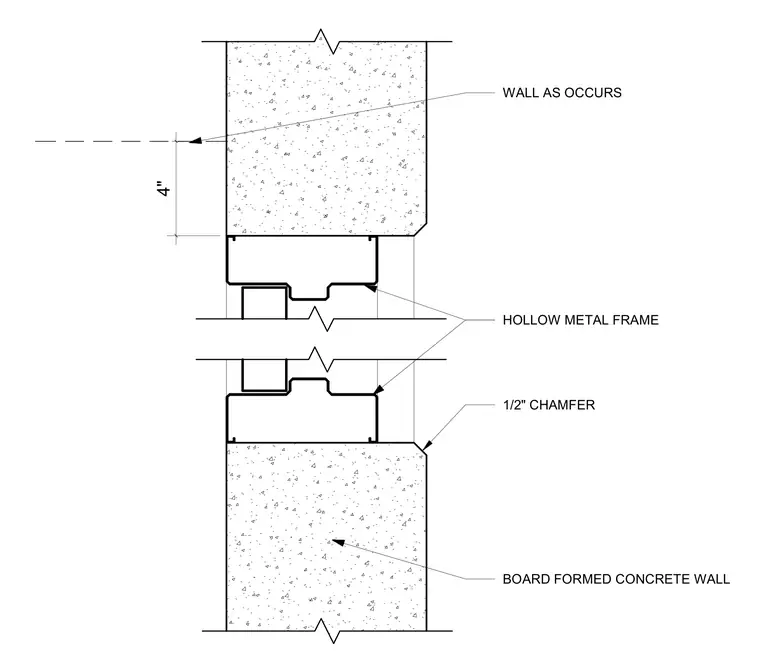

A hollow metal frame is integrated into a board-formed concrete wall assembly. The concrete wall meets the frame with a half-inch chamfer at the opening edge. A four-inch dimension establishes the vertical clearance or setback from the reference line to the frame head.
