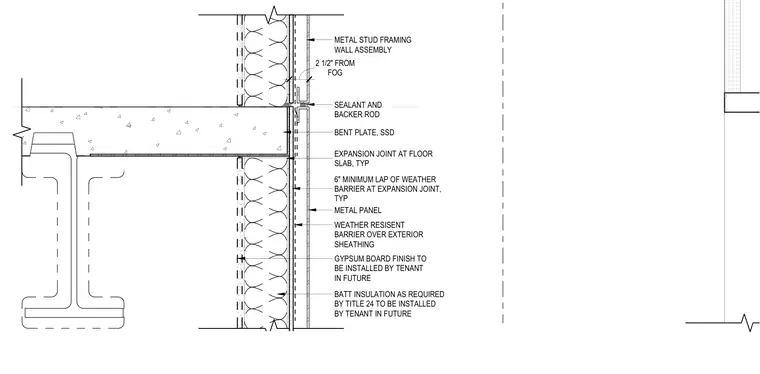

A metal panel exterior wall assembly meets an expansion joint at a concrete floor slab edge. A steel beam supports the concrete floor slab, which features a bent plate and a sealant with a backer rod at the expansion joint. The metal stud framing wall assembly includes exterior sheathing, a weather-resistant barrier with a six-inch minimum lap, and metal panels. Batt insulation and gypsum board finish are scheduled for future installation by the tenant. The vertical gap from the metal stud framing to the face is maintained at two and one-half inches.
SEALANT AND BACKER ROD EXPANSION JOINT AT FLOOR SLAB, TYP 6" MINIMUM LAP OF WEATHER BARRIER AT EXPANSION JOINT, TYP METAL PANEL WEATHER RESISENT BARRIER OVER EXTERIOR SHEATHING BATT INSULATION AS REQUIRED BY TITLE 24 TO BE INSTALLED BY TENANT IN FUTURE GYPSUM BOARD FINISH TO BE INSTALLED BY TENANT IN FUTURE BENT PLATE, SSD FOG 2 1/2" FROM METAL STUD FRAMING WALL ASSEMBLY
