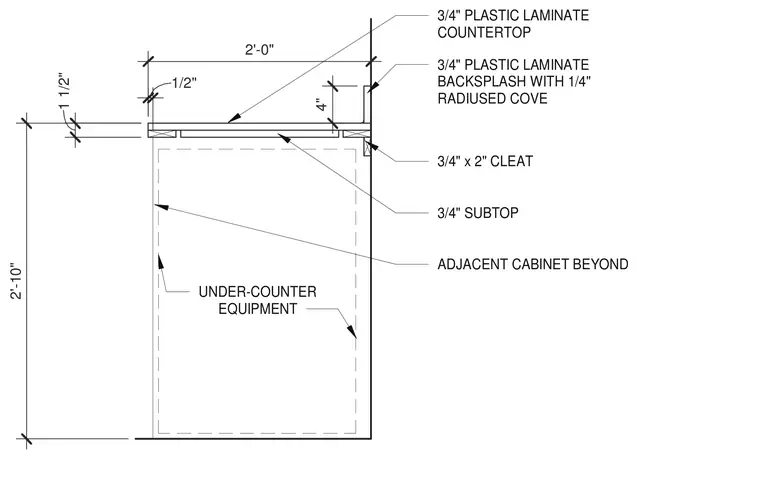

A three-quarter-inch plastic laminate countertop sits on a three-quarter-inch subtop supported by a three-quarter-inch by two-inch wood cleat against the wall. A matching three-quarter-inch plastic laminate backsplash features a one-quarter-inch radiused cove at the intersection with the countertop. The assembly is dimensioned with a standard counter height of two feet ten inches and a counter depth of two feet. Adjacent casework and under-counter equipment are indicated beyond.
3/4" PLASTIC LAMINATE COUNTERTOP 3/4" PLASTIC LAMINATE BACKSPLASH WITH 1/4" RADIUSED COVE 3/4" x 2" CLEAT 3/4" SUBTOP ADJACENT CABINET BEYOND UNDER-COUNTER EQUIPMENT 2'-10" 1 1/2" 2'-0" 1/2" 4"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
