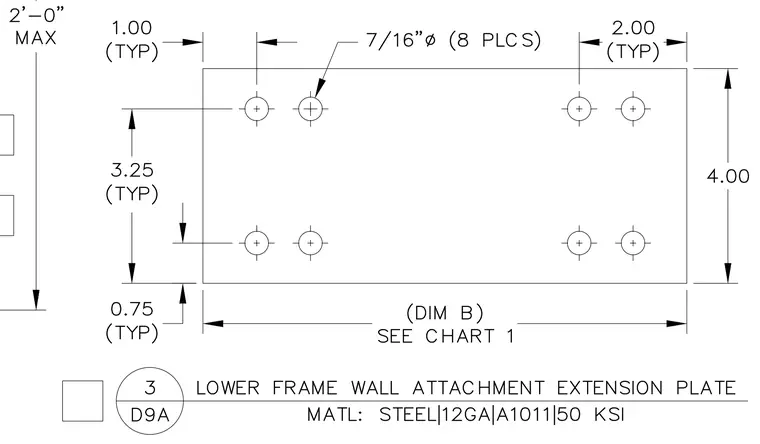

This lower frame wall attachment extension plate is fabricated from 12-gauge ASTM A1011 Grade 50 steel measuring 4.00 inches wide by a variable length designated as dimension B per chart 1 with a maximum span of 2 feet 0 inches. The plate features eight 7/16-inch diameter holes arranged in two rows of four with a typical center-to-center spacing of 2.00 inches at the ends and 1.00-inch edge distances. The vertical hole pattern is set at 3.25 inches on center with a 0.75-inch edge distance from the bottom edge.
2'-0" MAX (DIM B) SEE CHART 1 4.00 7/16"∅ (8 PLCS) 0.75 (TYP) 3.25 (TYP) 1.00 (TYP) 2.00 (TYP) LOWER FRAME WALL ATTACHMENT EXTENSION PLATE 3 D9A MATL: STEEL|12GA|A1011|50 KSI — + + + + + + + I 1
