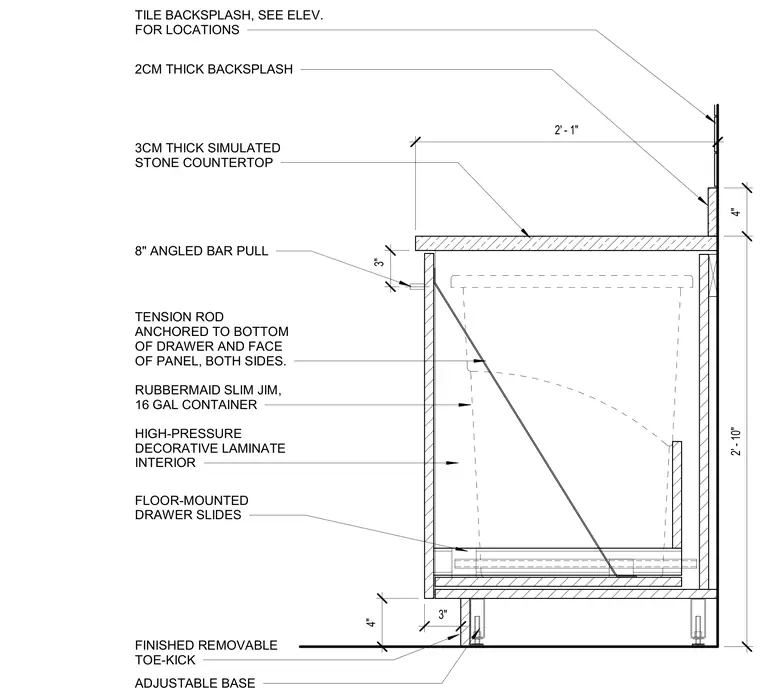

A high-pressure decorative laminate base cabinet houses a 16-gallon container on floor-mounted drawer slides with a tension rod anchored between the bottom of the drawer and the panel face on both sides. The unit features an 8-inch angled bar pull, a 3-centimeter thick simulated stone countertop, and a 2-centimeter thick tile backsplash. The assembly sits on adjustable base supports concealed by a finished removable 4-inch toe-kick.
2' - 1" 4" 3" 8" ANGLED BAR PULL HIGH-PRESSURE DECORATIVE LAMINATE INTERIOR FINISHED REMOVABLE TOE-KICK ADJUSTABLE BASE 3CM THICK SIMULATED STONE COUNTERTOP TILE BACKSPLASH, SEE ELEV. FOR LOCATIONS 2' - 10" 4" 2CM THICK BACKSPLASH FLOOR-MOUNTED DRAWER SLIDES TENSION ROD ANCHORED TO BOTTOM OF DRAWER AND FACE OF PANEL, BOTH SIDES. RUBBERMAID SLIM JIM, 16 GAL CONTAINER 3"
