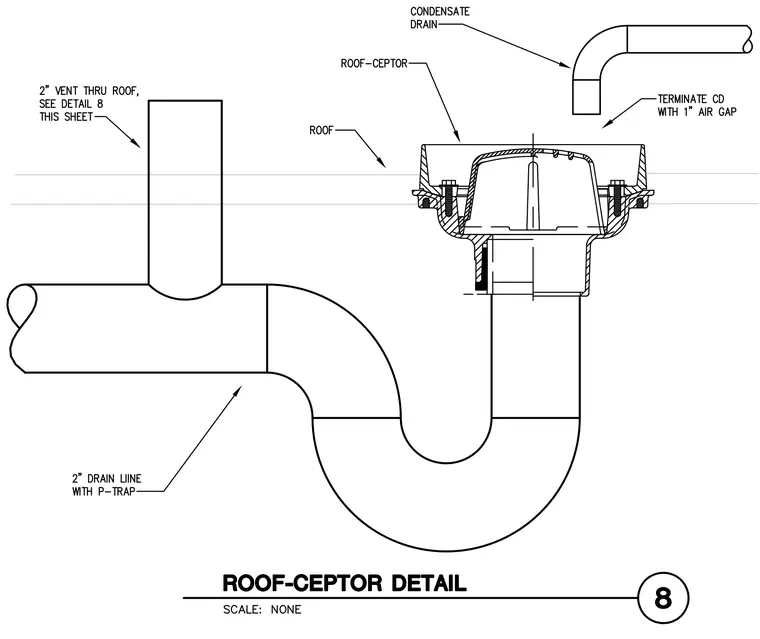

A condensate drain terminates above a roof receptor with a one-inch air gap. The roof receptor connects to a two-inch drain line equipped with a P-trap and a two-inch vent extending through the roof.
