A steel sectional door jamb condition is anchored to a wall assembly. A three-eighths-inch bent plate jamb guard extends to plus four feet zero inches and is secured with one-half-inch diameter wedge anchors spaced at twenty-four inches on center. The jamb guard is finished with two coats of safety yellow gloss enamel. A three-inch heavy duty steel sectional door track is mounted adjacent to the guard, and weather seal is applied all around. A dead bolt latch is located six inches above the jamb guard.

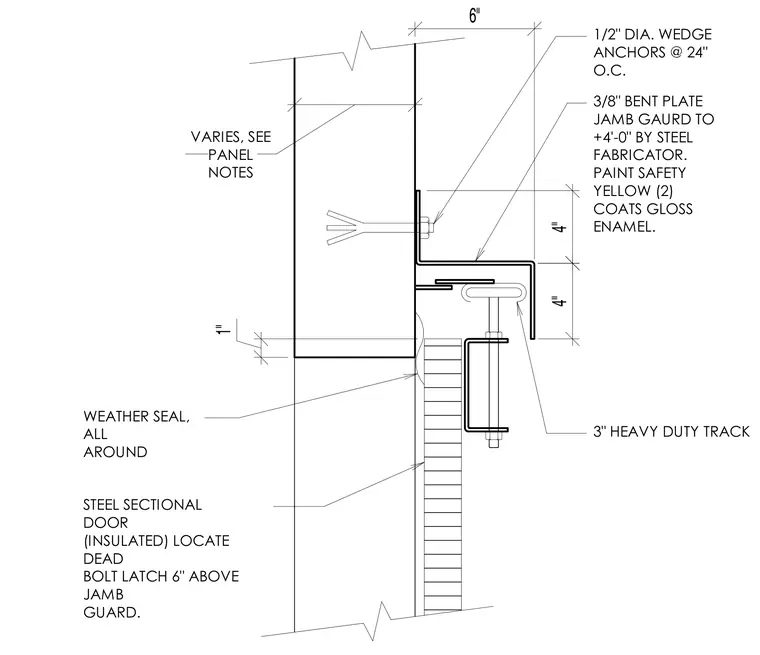

VARIES, SEE PANEL NOTES 1" 4" 4" 6" 1/2" DIA. WEDGE ANCHORS @ 24" O.C. 3/8" BENT PLATE JAMB GAURD TO +4'-0" BY STEEL FABRICATOR. PAINT SAFETY YELLOW (2) COATS GLOSS ENAMEL. 3" HEAVY DUTY TRACK STEEL SECTIONAL DOOR (INSULATED) LOCATE DEAD BOLT LATCH 6" ABOVE JAMB GUARD. WEATHER SEAL, ALL AROUND
