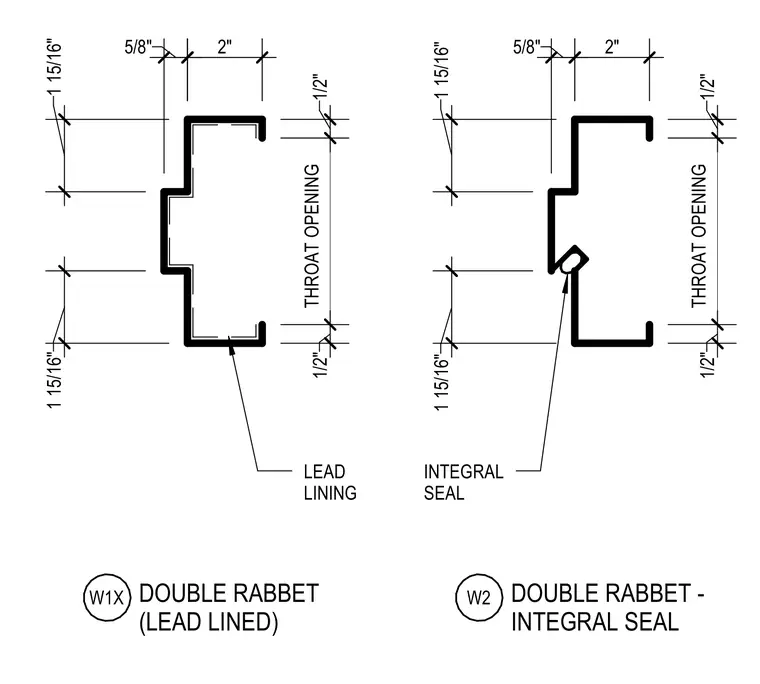

Double rabbet steel door frame profiles feature precision dimensions including a two-inch depth, five-eighths inch rabbet offset, one and fifteen-sixteenths inch face dimensions, and a one-half inch throat opening clearance. The first profile includes internal lead lining for radiation shielding applications. The second profile integrates a built-in seal detail along the rabbet interface.
1 15/16" 1 15/16" 5/8" 2" 1/2" 1/2" THROAT OPENING 1 15/16" 5/8" 2" 1/2" 1/2" THROAT OPENING 1 15/16" LEAD LINING INTEGRAL SEAL DOUBLE RABBET (LEAD LINED) W1X DOUBLE RABBET - INTEGRAL SEAL W2
