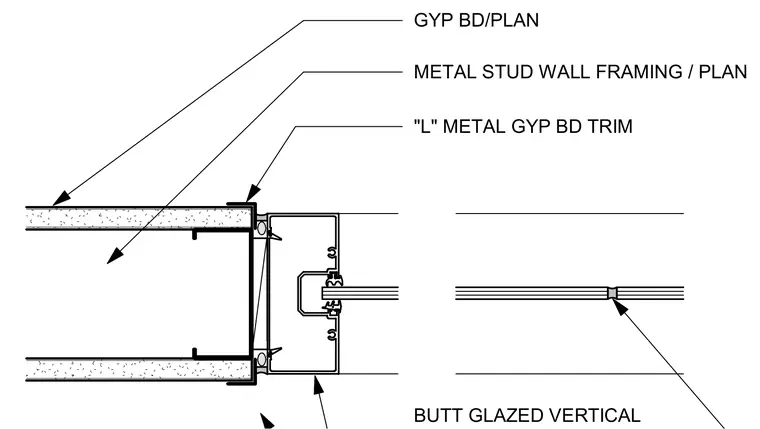

The storefront framing system abuts a cold-formed metal stud wall framed with gypsum board on both faces. An "L" metal gypsum board trim piece finishes the drywall return against the aluminum storefront extrusion. The glazed opening features a butt-glazed vertical joint detail between glass panes.
GYP BD/PLAN METAL STUD WALL FRAMING / PLAN "L" METAL GYP BD TRIM BUTT GLAZED VERTICAL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
