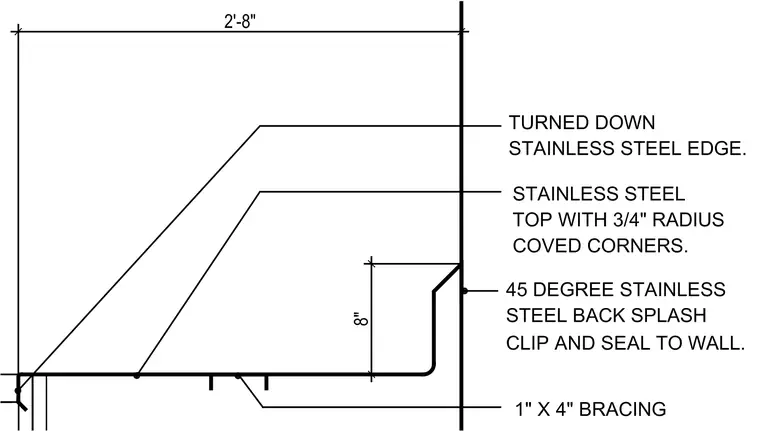

This section detail shows a utility counter featuring a stainless steel top with three-quarter-inch radius coved corners and a turned down stainless steel edge. The assembly includes an eight-inch forty-five-degree stainless steel backsplash clipped and sealed to the wall. The counter spans two feet eight inches and is supported by one-inch by four-inch bracing underneath.
