Architectural · A-DB9TD

Sound Insulated Steel Door Jamb and Head Details

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Doors Insulation Roof / Floor Openings

Connections

Welded Connection

About this detail

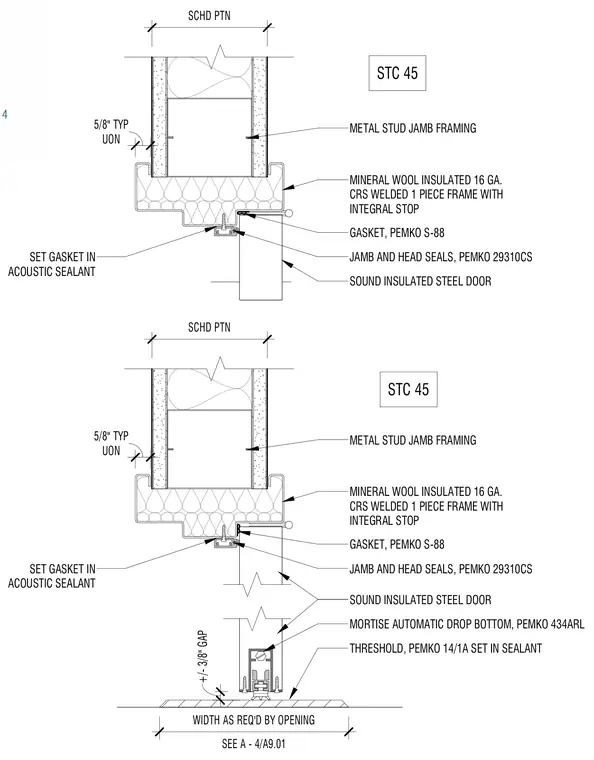

A sound-insulated steel door assembly features a 16-gauge cold-rolled steel welded one-piece frame with an integral stop, backed by metal stud jamb framing. The frame cavity is packed with mineral wool insulation for acoustic performance. A Pemko S-88 gasket and Pemko 29310CS jamb and head seals are set in acoustic sealant along the stop to prevent sound transmission. The sound-insulated steel door closes against the framed opening, with a mortise automatic drop bottom and a Pemko 434ARL threshold set in sealant at the sill.
