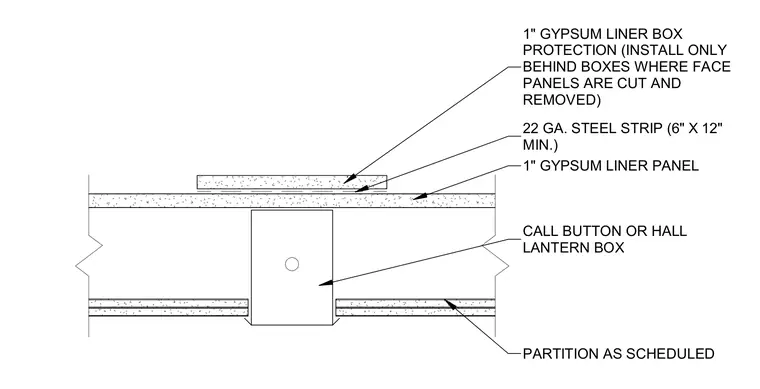

A call button or hall lantern box penetrates a scheduled partition built with a one-inch gypsum liner panel. A one-inch gypsum liner box protection is installed behind the box where face panels are cut and removed. A twenty-two gauge steel strip measuring a minimum of six inches by twelve inches reinforces the penetration assembly.
CALL BUTTON OR HALL LANTERN BOX 1" GYPSUM LINER BOX PROTECTION (INSTALL ONLY BEHIND BOXES WHERE FACE PANELS ARE CUT AND REMOVED) 22 GA. STEEL STRIP (6" X 12" MIN.) 1" GYPSUM LINER PANEL PARTITION AS SCHEDULED
