An HSS 5x5 brace connects to a structural beam and an embedded plate assembly using a 1-inch thick gusset plate. One-half-inch plates are welded to the top and bottom of the HSS brace with one-quarter-inch fillet welds on three sides typically. The gusset plate ties into a structural beam sized per plan and connects to an embedded 1x12 plate featuring six 1-inch diameter welded studs.

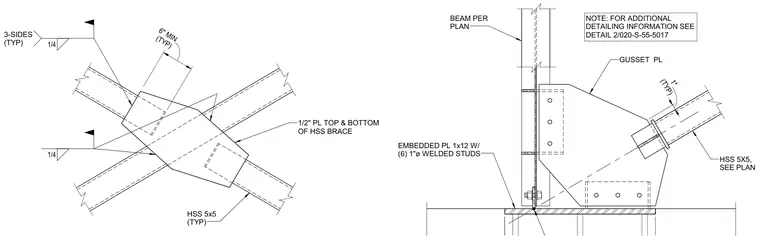

HSS 5x5 (TYP) 1/4 (TYP) 6" MIN 1/4 3-SIDES (TYP) 1/2" PL TOP & BOTTOM OF HSS BRACE (TYP) 1" GUSSET PL HSS 5X5, SEE PLAN BEAM PER PLAN EMBEDDED PL 1x12 W/ (6) 1"ø WELDED STUDS NOTE: FOR ADDITIONAL DETAILING INFORMATION SEE DETAIL 2/020-S-55-5017
