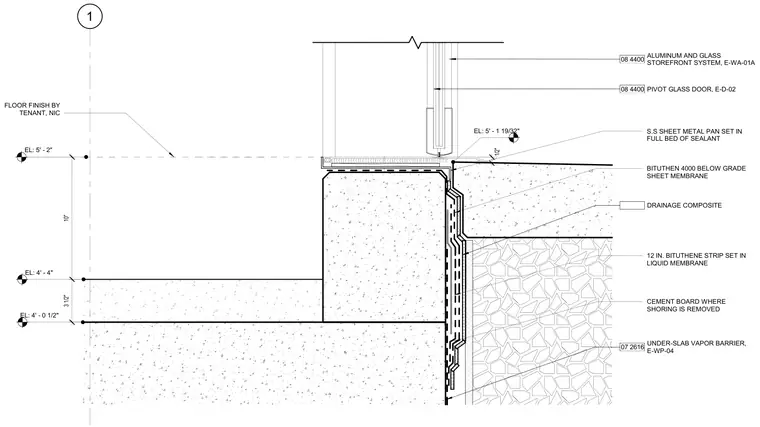

This vertical section details an aluminum and glass storefront pivot door sill resting on a concrete substrate with integrated below-grade waterproofing. A stainless steel sheet metal pan is set in a full bed of sealant at the door threshold, tying into a Bituthene 4000 below-grade sheet membrane and drainage composite. A twelve-inch Bituthene strip set in liquid membrane protects the transition where shoring is removed, over cement board and under-slab vapor barrier. Tenant floor finish is provided not in contract adjacent to the interior elevation.
1 08 4400 ALUMINUM AND GLASS STOREFRONT SYSTEM, E-WA-01A FLOOR FINISH BY TENANT, NIC 1/2" 3 1/2" 10" EL: 5' - 2" EL: 4' - 0 1/2" EL: 5' - 1 19/32" EL: 4' - 4" S.S SHEET METAL PAN SET IN FULL BED OF SEALANT BITUTHEN 4000 BELOW GRADE SHEET MEMBRANE DRAINAGE COMPOSITE 07 2616 UNDER-SLAB VAPOR BARRIER, E-WP-04 12 IN. BITUTHENE STRIP SET IN LIQUID MEMBRANE CEMENT BOARD WHERE SHORING IS REMOVED 08 4400 PIVOT GLASS DOOR, E-D-02
