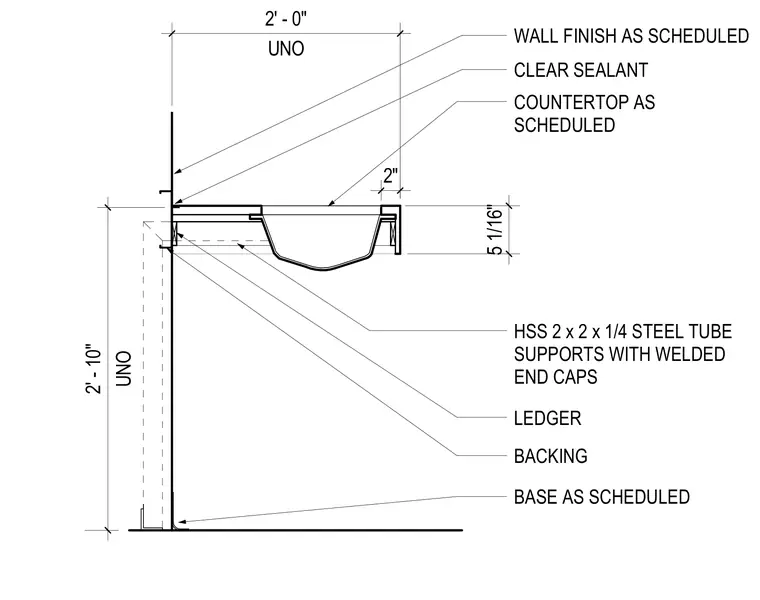

A cantilevered countertop projects two feet from a finished wall, supported by hollow structural steel tube supports measuring 2x2x1/4 inches with welded end caps. The steel tubes bear on a structural ledger and concealed wall backing. A clear sealant is applied at the wall finish and countertop junction. The assembly accommodates a scheduled countertop thickness of five and one-sixteenth inches and sits above a finished base.
UNO 2' - 0" UNO 2' - 10" COUNTERTOP AS SCHEDULED WALL FINISH AS SCHEDULED BACKING HSS 2 x 2 x 1/4 STEEL TUBE SUPPORTS WITH WELDED END CAPS BASE AS SCHEDULED CLEAR SEALANT LEDGER 5 1/16" 2"
