Steel pipe guardrail and handrail assemblies are anchored into concrete landings and pedestrian ramps. Vertical 1 1/2 inch steel pipe posts are spaced at a maximum of six feet on center and core-in mounted using a two inch diameter by twelve inch long steel pipe insert. Horizontal 1 1/2 inch steel pipes are spaced at varying vertical intervals to form a 42 inch high guardrail and a 36 inch high handrail where required. An additional handrail bracket is welded to the vertical pipe. All steel components are primed and painted with welds ground smooth, and #4 reinforcing bars at 24 inches are placed at each side of the post.

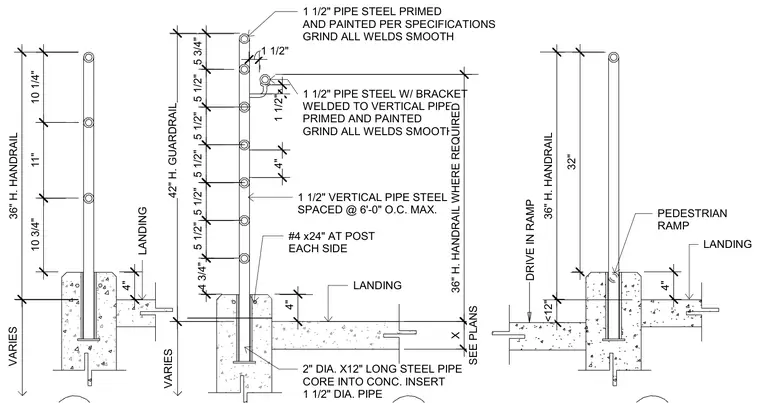

#4 x24" AT POST EACH SIDE 1 1/2" VERTICAL PIPE STEEL SPACED @ 6'-0" O.C. MAX. 1 1/2" PIPE STEEL PRIMED AND PAINTED PER SPECIFICATIONS GRIND ALL WELDS SMOOTH 2" DIA. X12" LONG STEEL PIPE CORE INTO CONC. INSERT 1 1/2" DIA. PIPE VARIES LANDING 1 1/2" PIPE STEEL W/ BRACKET WELDED TO VERTICAL PIPE PRIMED AND PAINTED GRIND ALL WELDS SMOOTH VARIES LANDING DRIVE IN RAMP PEDESTRIAN RAMP 5 3/4" 5 1/2" 5 1/2" 5 1/2" 5 1/2" 5 1/2" 4 3/4" 4" 4" 1 1/2" 1 1/2" 42" H. GUARDRAIL 10 1/4" 11" 10 3/4" 36" H. HANDRAIL 4" 36" H. HANDRAIL WHERE REQUIRED SEE PLANS X 36" H. HANDRAIL <12" 4" LANDING 32"
