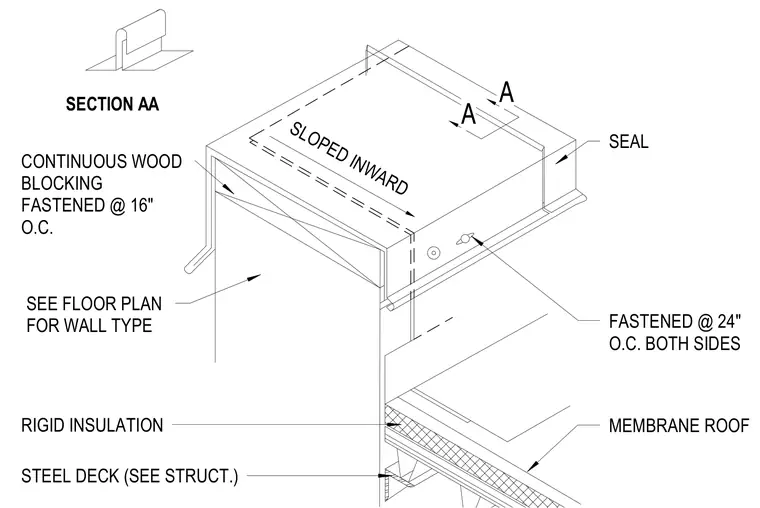

Continuous wood blocking is fastened at sixteen inches on center atop the parapet wall and finished with a metal coping cap. The membrane roof is applied over rigid insulation supported by a structural steel deck sized per structural drawings. Sealant is applied at joints with fasteners spaced at twenty-four inches on center on both sides. Wall construction is coordinated per the architectural floor plan.
SEAL MEMBRANE ROOF FASTENED @ 24" O.C. BOTH SIDES RIGID INSULATION A A SLOPED INWARD CONTINUOUS WOOD BLOCKING FASTENED @ 16" O.C. SECTION AA STEEL DECK (SEE STRUCT.) SEE FLOOR PLAN FOR WALL TYPE
